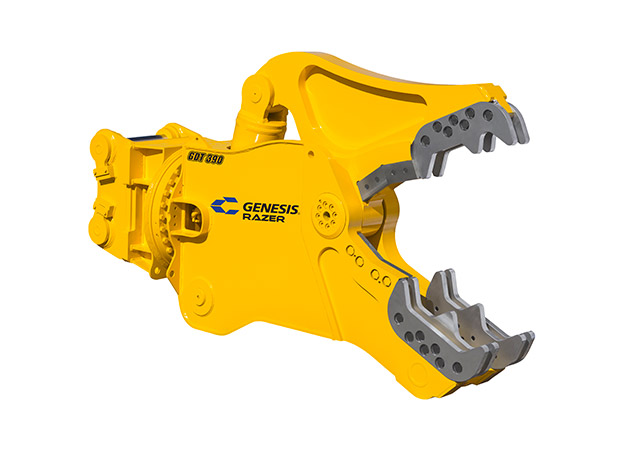

GDT (Genesis Razer Demolition Tool) attachment with open jaws facing right.
Summary

Razer Demolition Tool (GDT)

  • Low-cost, reversible, long-life crushing teeth are quickly and easily replaced, eliminating build-up
  • 4-way indexable cutting blades feature an apex that draws material deeper into the jaw for more efficient cutting
  • Easy-to-change crushing teeth are available in several configurations to maximize performance in any application
  • Lighter weight ensures stable mounting on today's excavators and specialty high-reach machines
  • Short, flat-top head with bolt-on bracket shortens the center of gravity while making it easy to change mounting for different carriers
Watch the GDT (Genesis Razer Demolition tool) attachment tackling high reach tasks.
Watch the GDT (Genesis Razer Demolition tool) attachment tackling high reach tasks.
  • Specifications
  • Description
  • Literature
  • Conversion Block
ModelWeight* (lbs.)Jaw Opening (ins.)Jaw Depth (ins.)Reach** (ft. ins.)Min. Excavator Weight
Stick Mount (lbs.)
GDT 1904,90031338' 0"45,000
GDT 2907,00039429' 2"66,000
GDT 39010,000464510' 6"90,000
ModelWeight* (kg)Jaw Opening (mm)Jaw Depth (mm)Reach** (mm)Min. Excavator Weight
Stick Mount (mt)
GDT 1902,2237878382,43820
GDT 2903,1759911,0672,79430
GDT 3904,5361,1681,1433,20041

*Weight includes mounting bracket to attach to excavator.
**Distance is measured from the attachment mounting pivot (boom or stick) forward.
All Genesis GDT Razer tools are covered by a 12-month, 1,500-hour (whichever occurs first) warranty.

The GDT Razer demolition tool from Genesis Attachments is designed for today’s new classes of excavators and specialty, high-reach applications.


Featuring a lighter-weight design, the GDT is optimized to fit on standard, as well as most high-reach, demolition machines. A short, flat-top head with bolt-on bracket makes installation simple, shortens the center of gravity and makes it easier to switch the tool between excavators.


The number of crushing teeth and their locations can be customized to meet project needs, and the bolt-on teeth can be interchanged and reversed front to back for longer life and lower cost of operation and ownership.


The Genesis Razer Demolition Tool’s metal cutting blades in the back of the jaw are four-way indexable and feature an apex design that draws material deeper into the jaw for more efficient cutting.


To further improve productivity and reliability, the GDT Razer also features a pass-through lower jaw to prevent material build-up and jamming, as well as a reverse-mounted cylinder for protection from damaging debris.


For additional product, application or service information, call us at 1-888-SHEAR-IT.
